Synthex

Synthex Overview

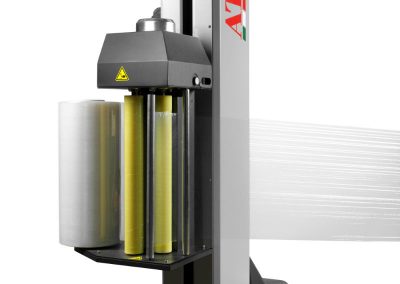

Duration proved design rotating table for wrapping palletized loads of any shape and weight with stretch film. Synthex Stretch Wrap Machine is characterised by the use of power pre-stretch film, to reduce the cost of ownership. In combination with the attractive price level we achieved a real WIN – WIN situation.

The installation of this machine is extremely easy. No engineer required to put this machine in operation.

Technical Characteristics

Total installed power 0,85 kw
Standard voltage 230 V – 50/60 Hz – 1 Ph
Electric plant and motors protection degree IP 54
Turntable diameter 1650 mm
Max. pallet dimensions 800x1200 mm or 1000 x 1200mm
Standard Wrapping height 2200 mm
Max. Load weight 1500 Kg
Rotation speed adjustable by frequency changer from 3 to 12 rpm
Spool carriage upwards/downwards speed adjustable by frequency changer
Acceleration/deceleration ramps adjustable by frequency changer
Precise phase stopping at cycle end

Downloads

Download Leaflet                  Download Layout
