PowerWrapper 50

PowerWrapper™ 50

This pallet wrapping machine is our entry-level, semi-automated model. The PowerWrapper50 is equipped with a simple programme and only has a few wrapping options. It uses a mechanical brake type film and is capable of wrapping up to 15 pallets per day.

This is an amazing value machine, and is perfect for storage operations where the number of pallets are limited.

  • Minimum pallet dimensions 600 x 600 mm
  • Maximum height (including pallet) 2200 mm
  • 2 AGM batteries for up to 200 pallets per charge
  • 99 storable programs
  • Photocell for automatic height measurement
  • Film carriage speed control included

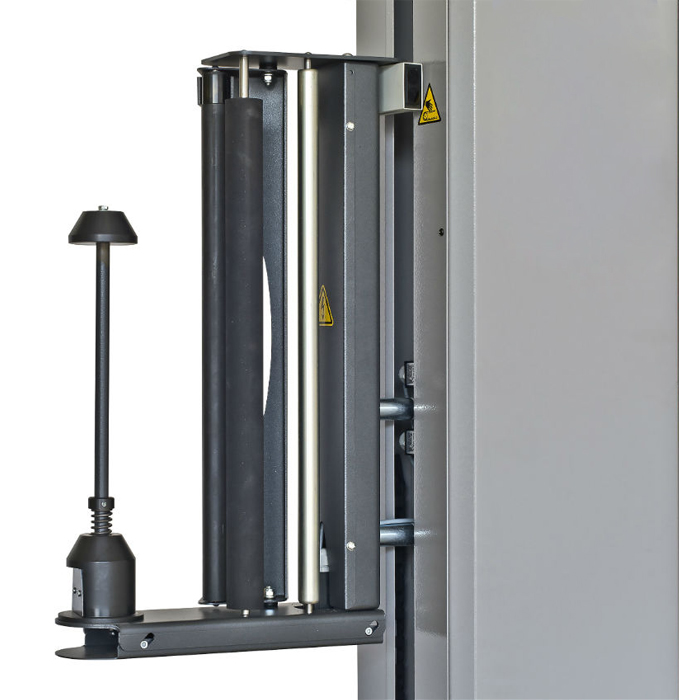

  • Film slide FM with mechanical brake
  • 300% power pre-stretch film carriage





Technical Characteristics

Total installed power 0,75 kw
Standard voltage 230 V – 50/60 Hz – 1 Ph
Electric plant and motors protection degree IP 54
Turntable diameter 1650 mm
Optional diameters 1500/ 1800 / 2200 & 2400 mm
Standard wrapping height 2200 mm
Optional Wrapping heights 2500 / 3000 / 3300 mm
Loading weight 2000 Kg
Wrapping programs Standard 3 + 1
Rotation speed adjustable by frequency changer from 5 to 12 rpm
Spool carriage upwards/downwards speed adjustable by frequency changer
Acceleration/deceleration ramps adjustable by frequency changer
Precise phase stopping at cycle end
